C母屋成形機

Machine Features and Advantages

This is a fully automatic continuous roll forming machine, suitable for both light and heavy-duty applications, with a forming speed of 18-25 m/min.

It employs an automatic profile changing system to form multiple profile specifications, and integrates an online flexible punching system for flexible operation.

Optional pre-cutting/post-cutting processes: Pre-cutting is available for multi-specification production, saving tool change costs and time; post-cutting is available for fewer specifications, significantly improving profile quality.

CE certified, meeting European quality standards, and holding multiple patents; popular models are in stock for fast delivery.

Equipped with an industrial-grade computer motion control system and an intelligent digital operating interface, this machine features a user-friendly design, simple operation, stable performance, reliable quality, and an aesthetically pleasing and economical design.

Raw Materials

Material: Cold-rolled/hot-rolled steel, galvanized steel

Thickness: 1.0-3.0mm

Yield Strength: 235-350MPa

Width: Customized according to profile requirements

Parameters

Uncoiler: 5T

Feeding Table

Leveling Device

Punching Device: Customized according to profile requirements

Forming Speed: 18-25m/min

Safety Cover: Optional

Post-Cutting Device

Output System:

Manual Support/Automatic Stacker (Optional); Stacking Direction: Lateral/Vertical (Optional)

Hydraulic System provides power for punching and post-cutting systems

Electrical Control System: Mitsubishi/Siemens/AMS (Optional/Customized as needed)

Specifications

The forming machine is a brand new Grade A quality machine, supporting personalized customization. Basic specifications are fixed:

Number of Operators: 1-2 people

Power Supply: 220V/380V/415V/460V, 50/60Hz, 3-phase (Customized as needed)

Equipment Weight: Approximately 12 tons External Dimensions: Approximately 25 × 2.5 × 1.8 m (Length × Width × Height)

Container Loading Requirements: Typically requires one 40-foot container

Color: Standard blue/grey (customizable upon request)

Origin: Xiamen, China

Packaging: Standard export protective packaging

Formed Shape: Customized according to profile drawings and customer requirements

Production Process Flow

The equipment is divided into pre-cutting and post-cutting processes depending on the cutting technology. Only the order of the cutting steps differs; all other processes are the same. Both support automatic/passive uncoiling:

Pre-cutting Process: Uncoiling machine → Feeding guide → Leveling system → Punching device → Fixed-length pre-cutting → Cold bending forming system → Output (Manual support/Automatic stacker, optional)

Post-cutting Process: Uncoiling machine → Feeding guide → Leveling system → Punching device → Cold bending forming system → Hydraulic fixed-length post-cutting → Output (Manual support/Automatic stacker, optional)

Formed Specifications and Coil Width

We offer a variety of standard C-shaped steel forming specifications, including 80mm, 100mm, 120mm, 140mm, 160mm, 180mm, 200mm, 220mm, 240mm, and 250mm, with thicknesses ranging from 1.0-3.0mm. Some specifications are standard configurations, while others are optional.

We are compatible with various coil widths, including 19mm, 219mm, 253mm, 286mm, 319mm, 353mm, 386mm, 320mm, 453mm, and 486mm.

Production Line Layout

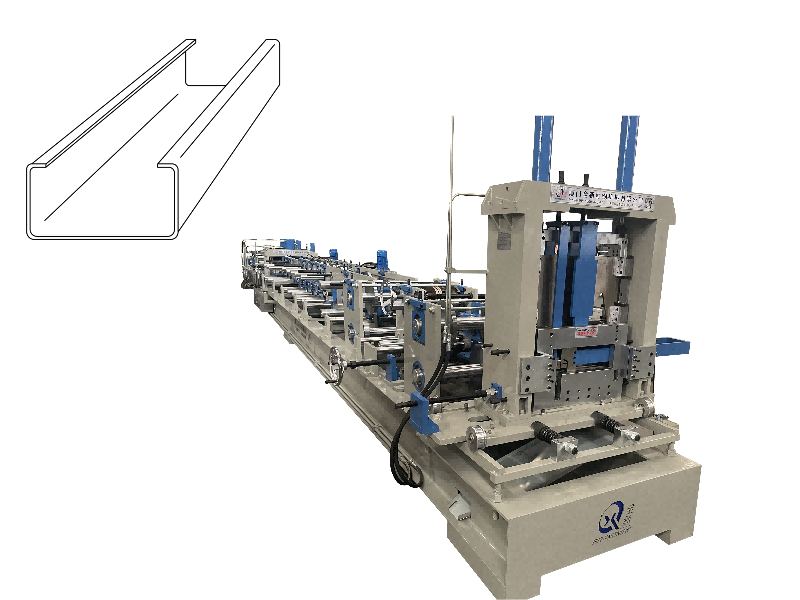

The overall length of the production line is approximately 25m. It consists of an uncoiler, feeding unit, leveling device, punching device, cold bending forming system, cutting device, and finished product support platform, in that order. It is equipped with a hydraulic station and electrical control cabinet. Each component has a fixed layout dimension.

Application Scenarios of Finished Products

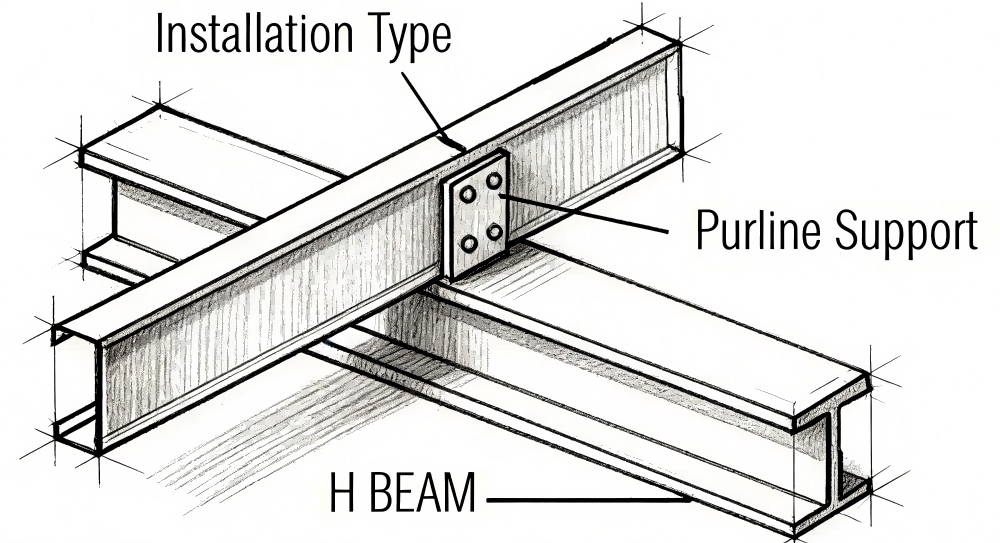

Finished C-shaped steel is widely used in purlins and wall beams of steel structure buildings, and can also be combined into lightweight roof trusses and supports;

It can also be used in components such as columns, beams, and supports in light industrial machinery manufacturing;

Due to the characteristics of C-shaped steel, such as being environmentally friendly, sturdy and durable, economical, easy to install, and aesthetically pleasing, the application scope of related steel building materials continues to expand.

Our metal purlin machine can roll forming hot dip steel, Q235 steel, Q345 steel and even 550Mpa hard steel coil, Beenew machinery will manufacture steel purlin machine according to buyer’s processing steel material performance, required speed, final purlin precision and other special needs.

There are three popular cutting styles for metal C shape making machines:

First, universal cutting, it is good for saving cutting blades time and suitable for size interchangeable purlin machines, one set purlin making machine can produce many size purlins but only one set universal cutting blades can meet all needs.

Second, flying cut, it is good for improving steel C shape forming machine’s line speed, the line needn’t stop during purlin cutting off.

Third, Hydraulic stop cutting, it is normal design style, better manufacture cost and stable performance for steel purlin making machines.

So, all our buyers can choose suitable designs according to your budget. Welcome to contact with us now for more professional suggestion about your galvanized galvanized c purlin forming machine.

FAQ

What is a c and z purlin machine?

Steel purlin machine is equipment that produces C shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.

This purlin machine is fully automatic and easy to operate with a friendly HIM screen. It consists of one decoiler, sheet guiding, metal strip leveling, equipment rollforming section, PLC control system, Hydraulic cutting, collection table.

Their main advantages are beautifully customized designs, easy and stable operation with strong body frame

What is c purlin?

C purlins or Cee purlins is a purlin with a C-shaped cross-section, horizontal beams that are designed to form the roof and wall joists of a building shell structure.

They sit between the roofing sheets and the building, acting as a support for the sheet to ensure it is firmly attached and safe place.

The advantage of C-shaped purlin is light-weight, easy to install and transport.
